品牌:克莱德
起订:1台
供应:110台
发货:3天内

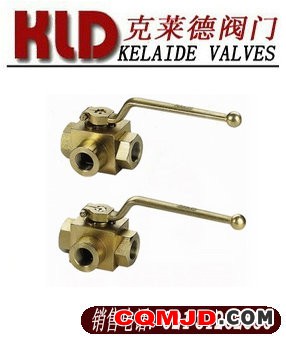

克莱德品牌，KHB3K液压三通球阀，销售电话：021-31262586.高压球阀适用于液压系统和化工系统的各种管路上,作启闭用。 口径大小DN6-80MM，公称压力25MPA、31.5MPA、42MPA、50MPA,其他工作压力可根据客户要求定做，工作温度:-20~+170℃.接头标准：SAEJ518C标准。材质有碳钢，不锈钢304、不锈钢316。适用介质:液压油、水一乙二醇、其它混合液体。
型号说明
① 系列代号：KHB3K（BK3）系列二位三通球阀
② 连接代号：M** 、G** 、 **LR 、**SR、PT**、NPT**
③ 阀体材料：1-钢、2-不锈钢
④ 球体材料：1-钢、2-黄铜、3-不锈钢
⑤ 工作温度：1、-25～＋100℃ 2、-30～＋170℃
⑥ 其他密封：2-丁晴橡胶、4-氟橡胶
⑦ 手柄形式：01-铝质直柄02-铝质曲柄03-铸锌直柄04-铸锌曲柄05-钢质直柄06-钢质曲柄09-不带手柄
⑧ 设计序号：由生产商定
⑨ 表面处理：空白-磷化、G-电镀黄锌
|
简略型号 |
PN(bar) |
DN |
LW |
RA |
d1 |
i |
L |
L1 |
B |
H |
h1 |
h2 |
h3 |
SW1 |
SW2 |
S |
|
KHB3K-M16×1.5 |
500 |
06 |
06 |
11 |
M16×1.5 |
11 |
69 |
40 |
26 |
45 |
13.5 |
33 |
8 |
09 |
22 |
27.5 |
|
KHB3K-M22×1.5 |
500 |
08 |
08 |
16 |
M22×1.5 |
12 |
76 |
42 |
32 |
49 |
16 |
36 |
10 |
09 |
27 |
33 |
|
KHB3K-M27×1.5 |
500 |
10 |
10 |
20 |
M27×1.5 |
12 |
76 |
42 |
32 |
49 |
16 |
36 |
10 |
09 |
27 |
33 |
|
KHB3K-M30×1.5 |
400 |
16 |
15 |
24 |
M30×1.5 |
13 |
84 |
48 |
38 |
61 |
19 |
45 |
11 |
09 |
32 |
37 |
|
KHB3K-M36×2 |
315 |
20 |
20 |
30 |
M36×2 |
15 |
103 |
60 |
48 |
70 |
25 |
55 |
11 |
12 |
41 |
45.5 |
|
KHB3K-M42×2 |
315 |
25 |
23 |
35 |
M42×2 |
18 |
116 |
65 |
57 |
79 |
28.5 |
64 |
11 |
12 |
50 |
54 |
|
KHB3K-M52×2 |
315 |
32 |
32 |
40 |
M52×2 |
20 |
149 |
84 |
75 |
101 |
37.5 |
84 |
12 |
14 |
60 |
70 |
|
KHB3K-M60×2 |
315 |
40 |
38 |
45 |
M60×2 |
22 |
174 |
91 |
85 |
112 |
42.5 |
95 |
12 |
14 |
70 |
84 |
|
简略型号 |
PN(bar) |
DN |
LW |
RA |
d1 |
i |
L |
L1 |
B |
H |
h1 |
h2 |
h3 |
SW1 |
SW2 |
S |
|
KHB3K-G1/8 |
500 |
04 |
06 |
／ |
G1/8 |
10 |
69 |
40 |
26 |
45 |
13.5 |
33 |
8 |
09 |
22 |
35 |
|
KHB3K-G1/4 |
500 |
06 |
06 |
／ |
G1/4 |
14 |
69 |
40 |
26 |
45 |
13.5 |
33 |
8 |
09 |
22 |
35 |
|
KHB3K-G3/8 |
500 |
10 |
10 |
／ |
G3/8 |
14 |
72 |
42 |
32 |
49 |
16 |
36 |
10 |
09 |
27 |
36 |
|
KHB3K-G1/2 |
500 |
13 |
12 |
／ |
G1/2 |
16 |
83 |
48 |
35 |
49 |
17 |
40 |
10 |
09 |
30 |
40 |
|
KHB3K-G1/2 |
400 |
16 |
15 |
／ |
G1/2 |
16 |
83 |
48 |
38 |
61 |
19 |
45 |
11 |
09 |
32 |
42 |
|
KHB3K-G3/4 |
315 |
20 |
20 |
／ |
G3/4 |
18 |
95 |
60 |
48 |
70 |
25 |
55 |
11 |
12 |
41 |
49 |
|
KHB3K-G1 |
315 |
25 |
25 |
／ |
G1 |
21 |
113 |
65 |
57 |
79 |
28.5 |
64 |
11 |
12 |
50 |
56.5 |
|
KHB3K-G 11/4 |
315 |
32 |
32 |
／ |
G 11/4 |
22 |
110 |
84 |
75 |
101 |
37.5 |
84 |
12 |
14 |
60 |
62.5 |
|
KHB3K-G 11/2 |
315 |
40 |
38 |
／ |
G 11/2 |
24 |
130 |
91 |
85 |
112 |
42.5 |
95 |
12 |
14 |
70 |
61 |
|
KHB3K-G2 |
315 |
50 |
48 |
／ |
G2 |
26 |
140 |
100 |
105 |
131 |
52.5 |
112 |
12 |
14 |
80 |
62.5 |
|
简略型号 |
PN(bar) |
DN |
LW |
RA |
d1 |
i |
L |
L1 |
B |
H |
h1 |
h2 |
h3 |
SW1 |
SW2 |
S |
|
KHB3K-NPT1/8 |
500 |
04 |
06 |
／ |
NPT1/8 |
10 |
69 |
40 |
26 |
45 |
13.5 |
33 |
8 |
09 |
22 |
35 |
|
KHB3K-NPT1/4 |
500 |
06 |
06 |
／ |
NPT1/4 |
14 |
69 |
40 |
26 |
45 |
13.5 |
33 |
8 |
09 |
22 |
35 |
|
KHB3K-NPT3/8 |
500 |
10 |
10 |
／ |
NPT3/8 |
14 |
72 |
42 |
32 |
49 |
16 |
36 |
10 |
09 |
27 |
36 |
|
KHB3K-NPT1/2 |
500 |
13 |
12 |
／ |
NPT1/2 |
16 |
83 |
48 |
35 |
49 |
17 |
40 |
10 |
09 |
30 |
40 |
|
KHB3K-NPT1/2 |
400 |
16 |
15 |
／ |
NPT1/2 |
16 |
83 |
48 |
38 |
61 |
19 |
45 |
11 |
09 |
32 |
42 |
|
KHB3K-NPT3/4 |
315 |
20 |
20 |
／ |
NPT3/4 |
18 |
95 |
60 |
48 |
70 |
25 |
55 |
11 |
12 |
41 |
49 |
|
KHB3K-NPT1 |
315 |
25 |
25 |
／ |
NPT1 |
21 |
113 |
65 |
57 |
79 |
28.5 |
64 |
11 |
12 |
50 |
56.5 |
|
KHB3K-NPT 11/4 |
315 |
32 |
32 |
／ |
NPT 11/4 |
22 |
110 |
84 |
75 |
101 |
37.5 |
84 |
12 |
14 |
60 |
62.5 |
|
KHB3K-NPT 11/2 |
315 |
40 |
38 |
／ |
NPT 11/2 |
24 |
130 |
91 |
85 |
112 |
42.5 |
95 |
12 |
14 |
70 |
61 |
|
KHB3K-NPT2 |
315 |
50 |
48 |
／ |
NPT2 |
26 |
140 |
100 |
105 |
131 |
52.5 |
112 |
12 |
14 |
80 |
62.5 |
