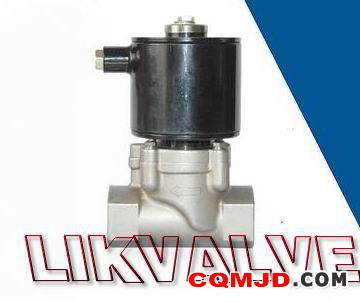

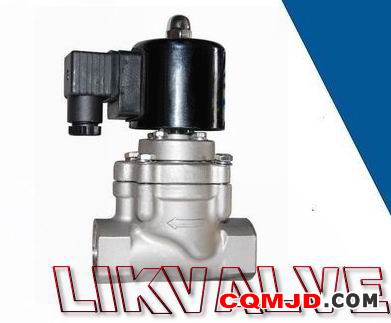

| 德国莱克LIK品牌：进口螺纹低温电磁阀应用范围、它广泛应用于航天、船舶重工、化工、冷冻设备、食品医设备等制冷管道系统中。
产品特点：
阀芯均为不锈钢活塞式，活塞环用特殊耐低温、耐磨材料制作；活塞与金属阀腔不产生直接摩擦，阀体安装方向无限制；特制线圈，不易烧毁；长时间停止动作重新启动，作同样灵敏。
Applications:
It is widely used in aerospace, shipbuilding Heavy Industry, chemical, refrigeration equipment, Medical equipment, food refrigeration piping systems.
Features:
Spool is stainless steel piston, piston ring with a special low temperature resistant, wear-resistant material; the piston and the metal does not produce direct friction valve chamber, valve mounting direction unlimited; special coil, not easy to burn; a long time to stop action to re-start, for the same sensitivity
主要技术参数：
|
产品规格：
|
DN0.5～DN100
|
|
阀体材质：
|
不锈钢
|
|
适用介质：
|
液氮、气、油、蒸汽、腐蚀流体等
|
|
温度范围：
|
-200～+150℃
|
|
介质粘度：
|
小于50C St(大于时需定制）
|
|
防护性能：
|
防潮、防爆（Exd IICT5)、防腐
|
|
接线方式：
|
接线座式；引线式；插头式
|
|
控制方式：
|
常开、常闭
|
|
电源电压：
|
DC24～127V; AC36～380V
|
|
连接方式：
|
内螺纹、法兰（外螺纹和特殊接口可定做或加转接头）
|
Main technical parameters:
|
Specifications:
|
DN0.5～DN100 DN0.5 ~ DN100
|
|
Body material:
|
Stainless Steel
|
|
Medium:
|
Liquid nitrogen, gas, oil, steam, corrosive fluids
|
|
Temperature range:
|
-200 ~ +150 ℃
|
|
Media Viscosity:
|
Less than 50C St (greater than the time to be customized)
|
|
Protection performance:
|
Moisture-proof, explosion-proof (Exd IICT5), anti-corrosion
|
|
Wiring:
|
Terminal Block Type; lead type; male
|
|
Control:
|
Normally open, normally closed
|
|
Power supply voltage:
|
DC24 ~ 127V; AC36 ~ 380V
|
|
Connection:
|
Thread, flange (male and special interfaces or add custom adapter)
|
工作原理：
常闭：当线圈通电时，先导阀芯吸合，先导孔打开，阀上腔卸压，活塞靠下腔介质压力推动，电磁阀打开；当线圈断电时，先导阀芯靠弹簧复位，先导孔关闭，阀上腔由活塞节流孔增压和复位弹簧的推力，电磁阀关闭。
常开：当线圈通电时，先导孔关闭，阀上腔由活塞节流孔增压和复位弹簧的推力，电磁阀关闭。当线圈断电时，先导阀芯靠弹簧复位，先导孔打开，阀上腔卸压，活塞靠下腔介质压力推动，电磁阀打开。
|
