进口法兰高压电磁阀
2014-06-15 00:21  浏览:12
价格:¥0.00/台
品牌:德国莱克LIK品牌
起订:1台
供应:1000台
发货:3天内
发送询价


产品名称: 进口法兰高压电磁阀 产品型号: LIK
驱动方式:   连接形式: 内螺纹、外螺纹、法兰式、、焊接式
结构形式: 先导式、直动式、零压差、手动复位 密封结构: 活塞结构
压力范围: 5-400MPA 公称通径: 0.5-600
常用材质: 不锈钢(304、316、316L) 技术咨询: 13826088101
   产品简介
  莱克生产的进口法兰高压电磁阀,驱动方式可选用,连接方式可选用内螺纹、外螺纹、法兰式、、焊接式,结构形式可选用先导式、直动式、零压差、手动复位,密封结构可选用活塞结构,压力范围PN5-400MPA,公称通径为0.5-600mm,材质可选用不锈钢(304、316、316L)。由于阀门的使用范围非常的广泛,同一种阀门在不同的场合与工况有不同的搭配,如果您是非专业人士,欢迎您向本公司来电咨询。本公司有专业技术人员为您服务!技术部电话:13826088101
   产品详情

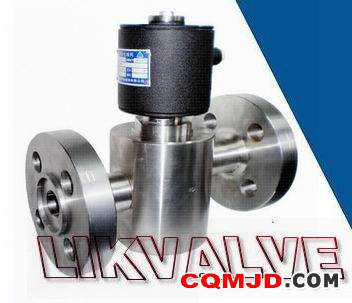

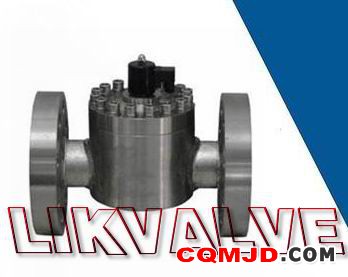

进口法兰高压电磁阀、德国莱克LIK品牌

一、应用范围    Applications

    它广泛应用在航天、船舶重工、石油化工、工业炉窑、锅炉、给排水、采暖空调、消防设备、干燥设备

食品医疗设备、清洗设备、景观灌溉、喷泉、水厂等管道系统中.

    It is widely used in aerospace, shipbuilding Heavy Industry, petrochemical, industrial furnaces,

boilers, plumbing, heating and air conditioning, fire-fighting equipment, drying equipment,Food medical

equipment, cleaning equipment, landscape irrigation, fountains, water and other piping systems

二、产品特点    Features

△不锈钢活塞式,动作灵敏,寿命长达100万次;专制线圈不易烧毁;阀安装方向无限制;适用范围广

△Stainless steel piston, movement sensitive, life is 100 million times; autocratic coil   easily burned;

valve installed on the direction of unrestricted; for a wide range of

三、工作原理    Work

△常闭型:线圈通电时,主阀芯靠介质压差力打开;线圈断电,阀关闭。

△常开型:线圈通电时,阀关闭;线圈断电,主阀芯靠介质压差力打开。

△ Normally closed type: coil power, the main valve to

   open by medium pressure force; coil power, valve closed

△Normally open type: coil power, the valve closed; coil power,

   pressure forces the main valve opens by media
备注:当出口端压力大于进口端压力,介质回反向导通。

可安装止回阀或订制带止回功能的阀。

When the exit pressure is greater than the inlet pressure, medium

Back to pass against the wizard.

Check valve can be installed or ordered withnon-return valve function

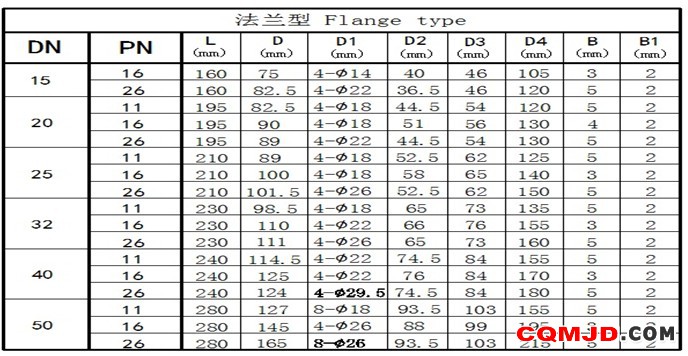

四、法兰型规格尺寸   Flange type Size

五、主要技术参数  Main technical parameters

△产品型号   Product Type:

△动作方式:直动式、分步直动式、先导式。

△Action by: direct-acting type, direct-action step, Pilot.

△阀体材质:铸钢体、不锈钢。(铸钢体不能用在腐蚀流体上)

△Body material: cast steel body, stainless steel. (Steel body can not be used in corrosive fluid on)

△控制方式:常开、常闭、自保式。

△Control mode: Normally open, NC, self-protection type.

△适用介质:水、气、油、蒸汽、燃气、腐蚀流体

△ Suitable medium: water, gas, oil, steam, gas, corrosive fluid
△工作温度     Operating temperature:

-200℃~0℃;-60℃~+100℃;-20℃~+80℃;-20℃~+150℃;0℃~+200℃;0℃~+350℃.

△防护性能:防水、防爆(Exd IICT5)、防腐。

△ Protection performance: waterproof, explosion-proof (Exd IICT5), anti-corrosion
△工作电压    Operating Voltage:
DC12V、DC24V、DC36V、DC110V、DC127V、DC220V;AC36V、AC110V、AC220V、AC380V

△接线方式:接线座式、引线式、插座式。

△Wiring: Wiring Block type , lead type , socket

△附加功能:带信号反馈、带手动控制、带止回功能

△Additional features: with signal feedback, with manual control, with a return function
